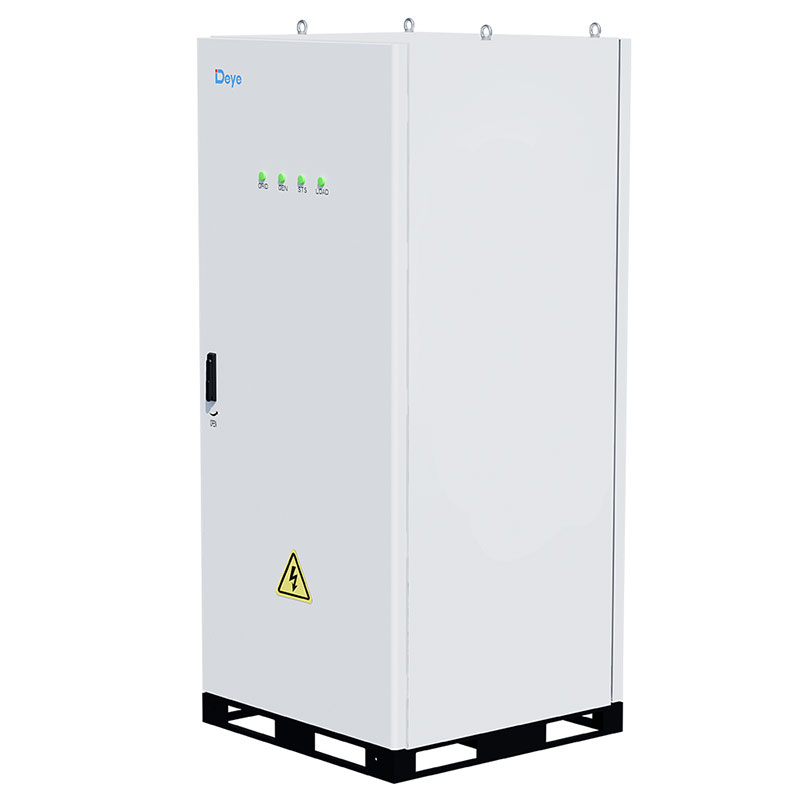

MS-TS500-2-A (with bypasss circuit breaker) C&I ESS Solution

The MS-TS500-2-A is an advanced AC power management system featuring both grid-tied and off-grid capabilities with a built-in energy management system. This sophisticated system allows for seamless switching between on-grid and off-grid modes, ensuring continuous power supply under various conditions.

Key Features
Hybrid Power Management: Automatically switches between on-grid, off-grid, and on/off-grid switching modes
Intelligent Energy Storage Integration: Works with ESS (Energy Storage Systems) to optimize power usage
Generator Control: Manages generator operation based on ESS state of charge (SOC)
Remote Monitoring: Includes comprehensive monitoring and control capabilities
Operation Modes
On-Grid Mode: When utility power is available, the system operates connected to the grid, utilizing grid power as the primary source.

Off-Grid Mode: During grid failures, the system automatically transitions to off-grid operation. When the state of charge (SOC) of the connected energy storage system falls below the configured threshold, the system can:

Initiate generator startup
Direct generator power to loads
Use surplus generator power to charge the ESS
The MS-TS500-2-A provides a comprehensive solution for managing multiple AC power sources, ensuring reliable power delivery while optimizing energy usage between the grid, storage systems, and generators.
